Hoppe Ultimate 2D Adjustable Steel Hinges - Set of Three CODE: HP-2D-Hinge Price: $61.35  Finish shown at left:   Brushed Chrome   Manufactured by:   Hoppe   Product options: Finish:  Rustic Umber Powder Coat    Unfortunately this combination is not accessable Quantity:   Add to cart

• Reviews

Product Description:

Hoppe Ultimate 2D Adjustable Steel Hinges - Set of Three

Catalog #HP-2D-Hinge

• These unique hinges provide for adjustment of a door both vertically and horizontally in the opening. This can help account for sagging walls and floors, and adjust the gap between the door and frame.



• Sold in set of three hinges required to hang a single door:
• One set hinge - installed as the center hinge - provides 2.5 mm of vertical adjustment.



• Two guide hinges - installed at the top and bottom - provide 2 mm of horizontal adjustment. The guide hinges float up and down with the adjustment of the set hinge to prevent hinge binding.



• Screws are provided.



• Maintenance free bearings - no lubrication required



• Overall size is 4" x 4"



• Non-removable pin (NRP) for increased security



• Base material is steel



• These hinges are handed and easily reversible:
• The thicker leaf goes on the door, the thinner leaf goes on the frame



• To reverse hand, simple pull out the hinge pin and slide in from the opposite end



• Currently available only in the following finish: Rustic Umber Powder Coat (a very dark brown) on steel:


• Other finishes available on special request



• Click here for photo of all finishes on Hoppe's website

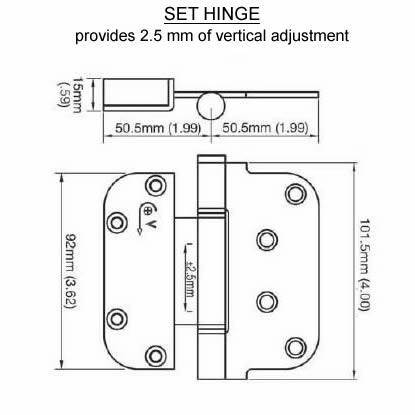

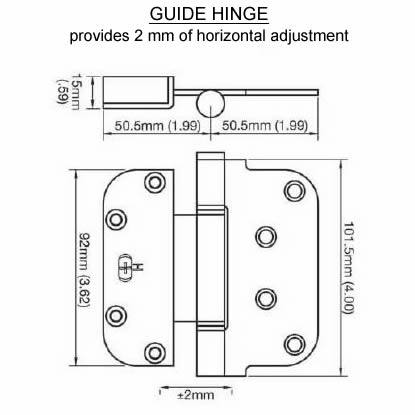

• Measured diagrams:





• To adjust:
• Adjust vertically and horizontally using the (H) and (V) adjustment screws located on the door leaf of each hinge.



• To adjust vertically, open door to 90 degrees and turn (V) screw of set hinge.



• To adjust horizontally, turn (H) screw of guide hinge.



• Never use power screwdriver for hinge adjustment.



• Click here for adjustment instructions and diagram on Hoppe's website.
