Multipoint Parts Finder
Find replacement gears by comparing your door hardware and measuring its faceplate and backset.

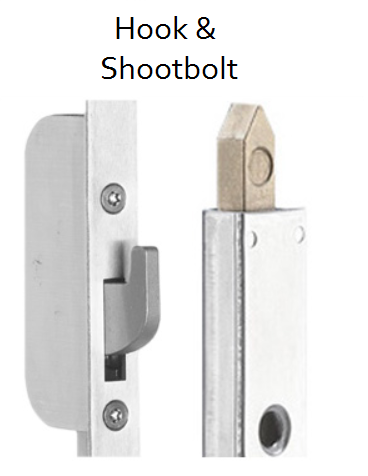

Which locking points look like yours?
Compare the moving parts on the edge of your door. Choose the closest match.
Measure the faceplate width
Measure the metal strip on the door edge across its width.
Check the lock's measurements
Measure from the edge of the faceplate to the center of the handle spindle for the backset.
Gears to review
Compare the remaining measurements and the product options before ordering. The matching gear product can offer compatible extensions when the separate gear extension add-on is active.
Let's identify the lock together
The available product data doesn't establish a safe match for this selection. Send us photos of the full door edge, close-ups of the gear, and faceplate and backset measurements.
Email Builders Lock · 800-260-5625For HLS 9000 hardware. HLS 7 Series and parts without a confirmed fit need assistance. Part numbers stamped on backplate trim may not identify the lock mechanism.
