Hoppe Manual Tongue Gear for 35mm Backset, 14mm Deadbolt Throw

                                                                                                                      Click here to see Hoppe HLS9000 Trim, Levers, Backplates and Cylinders  Please note that this item includes both the multipoint gear and the bottom extension.

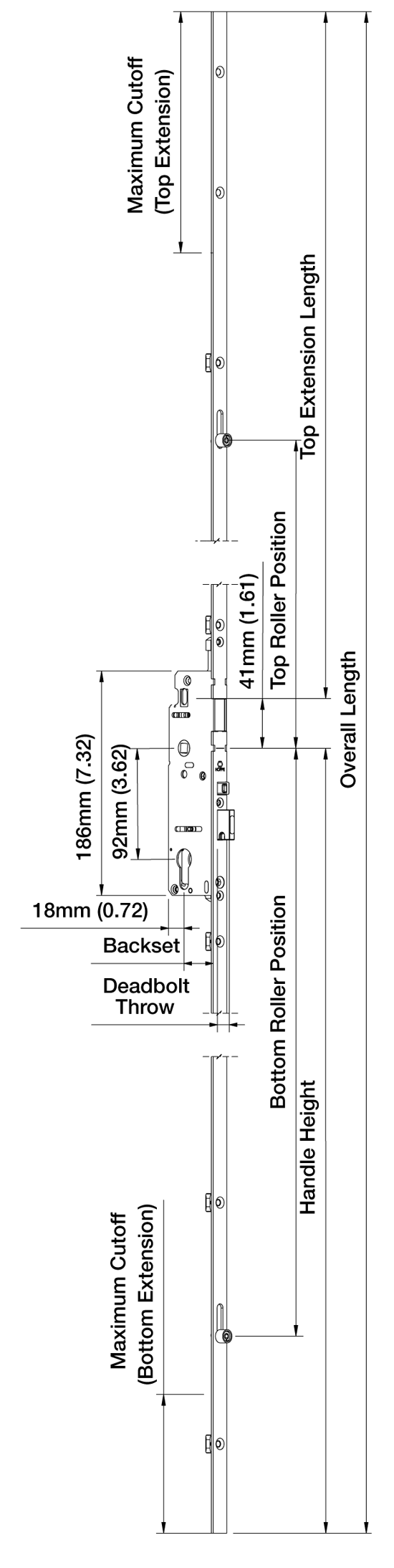

The last step is to choose the bottom tongue position that matches your door. The bottom tongue position is measured from the center of the handle to the bottom tongue as shown in the diagram.

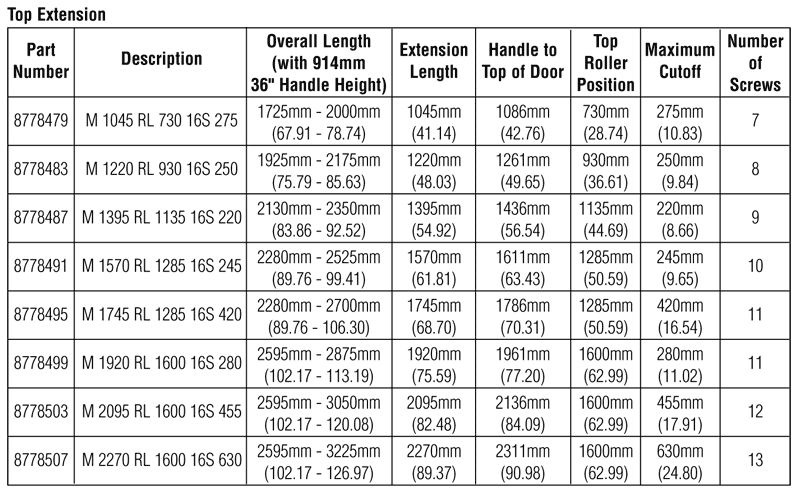

If you need a replacement Top Extension measure length and distance to top tongue position, find part number below that fits your application and select it from the drop down menu above. Take note of maximum cutoff dimension as this is the maximum you can safely trim off the extension without affecting functionality.
